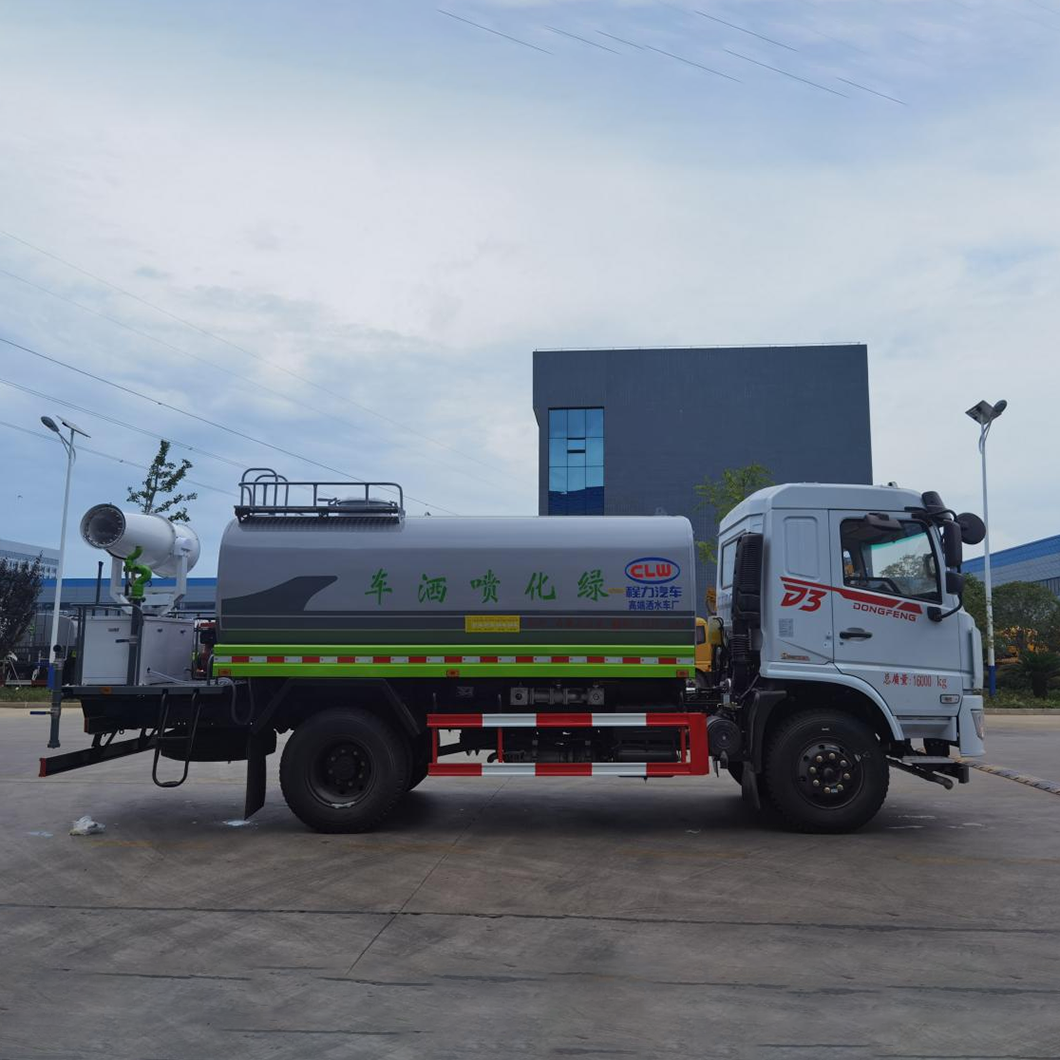

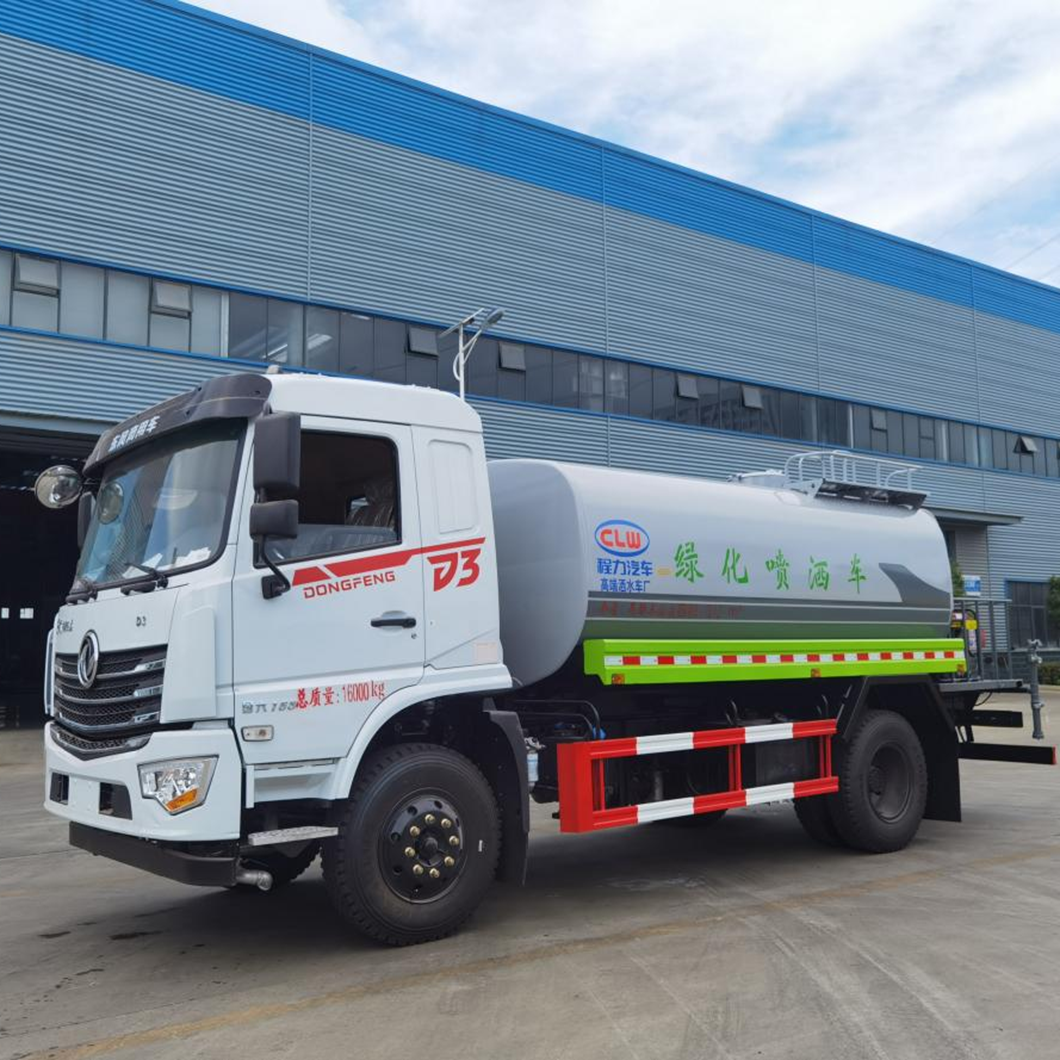

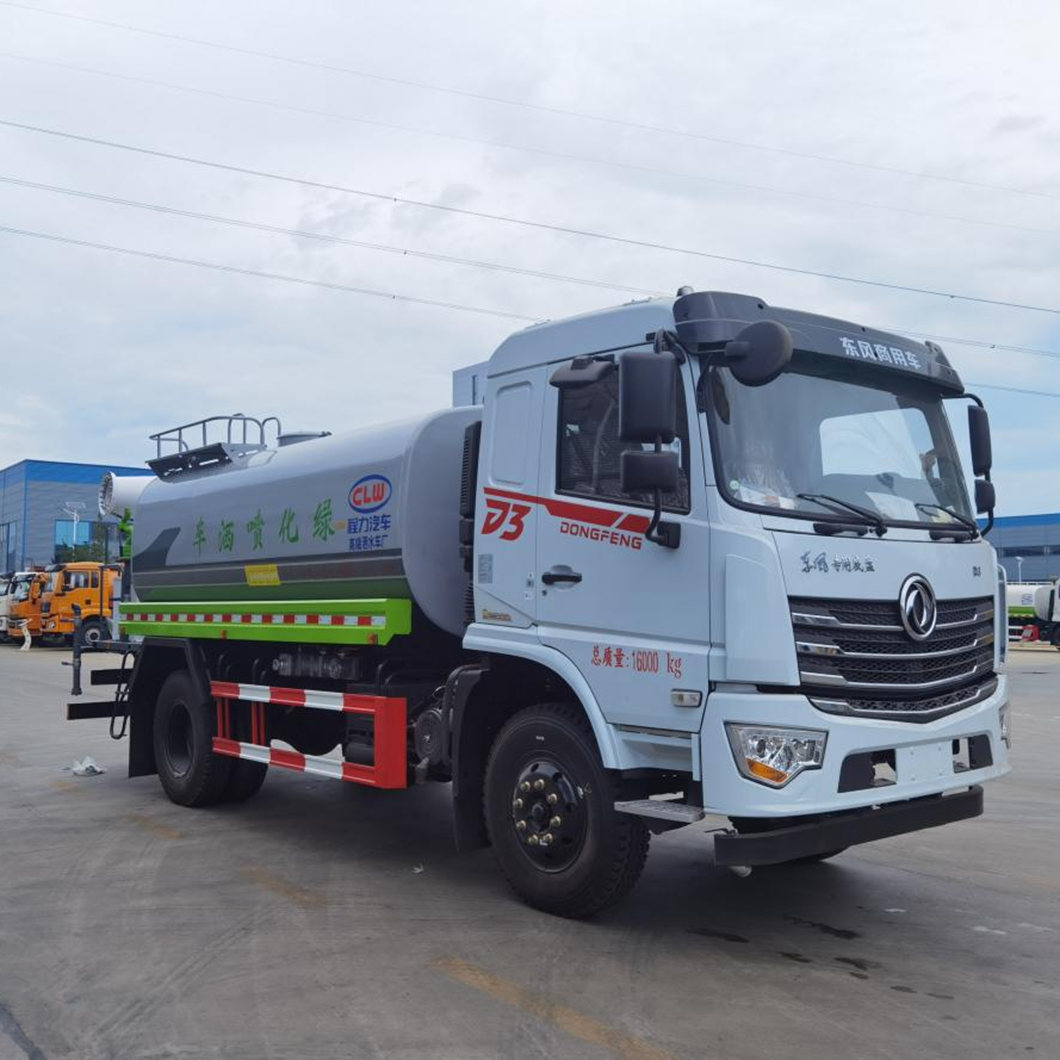

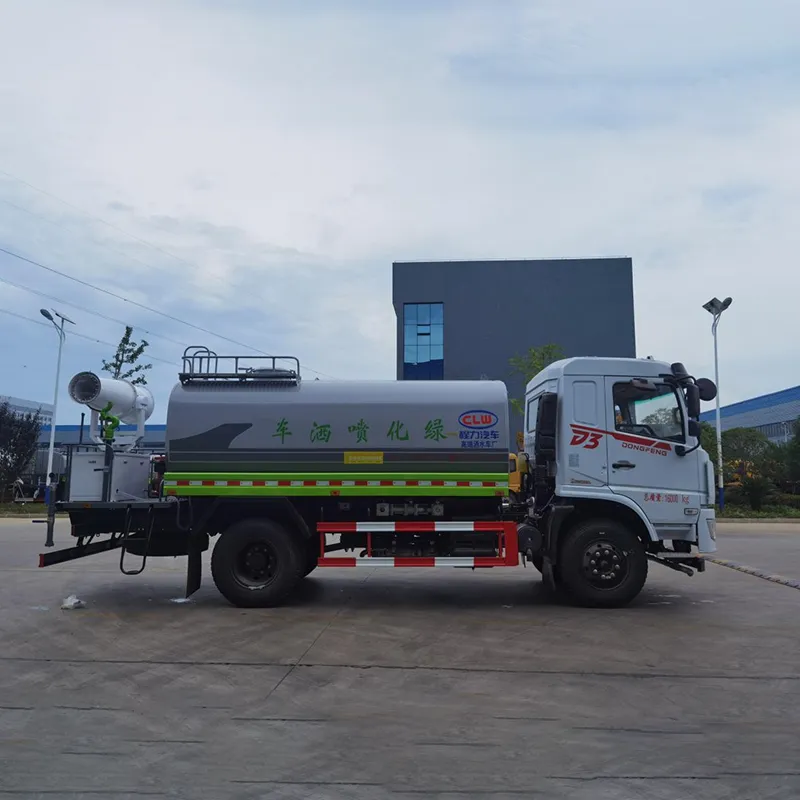

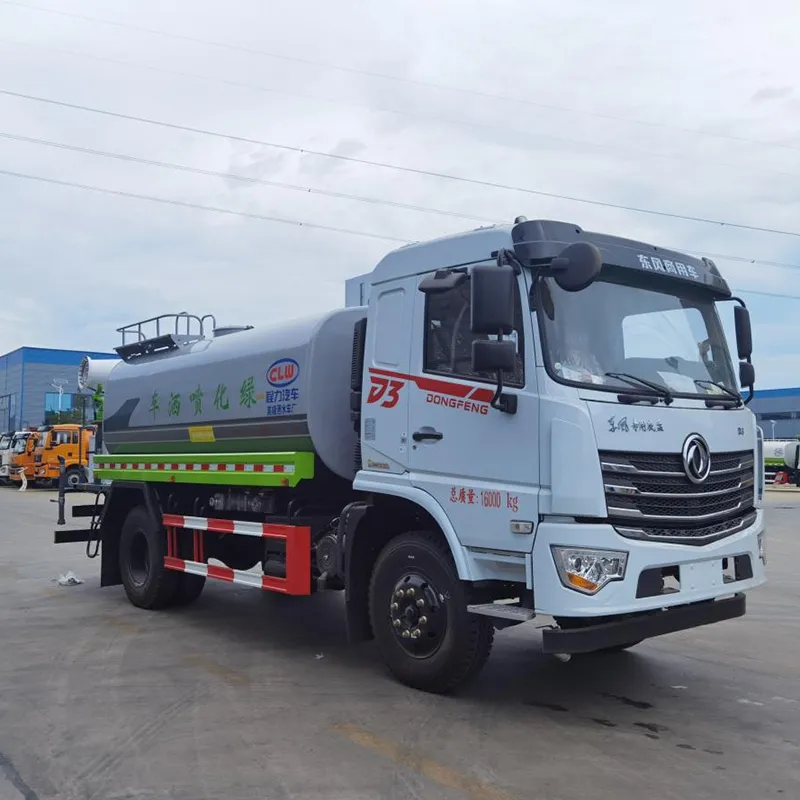

CLW5162GPSZD6 Green Sprinkler Truck

Product OveRView

The CLW5162GPSZD6 Green Sprinkler Truck is a medium-sized Landscaping Water Truck designed for urban greening irrigation, road cleaning, dust suppression, and emergency firefighting.

It is built on the Dongfeng DFV1163GP6DJ chassis, powered by a 170 HP Euro VI engine from Yuchai or Yunnei, and equipped with a large-capacity tank (11.9 m³), high-pressure water cannon, and multi-functional spray system, making it ideal for municipal, construction, and environmental applications.

Key Features

• Tank Capacity: Actual 11.9 m³ (Rated 10.12 m³)

• Spray System: Front flush, rear sprinklers, side spray, high-pressure water cannon

• High-Pressure Water Cannon: Adjustable spray shapes (jet, heavy rain, medium rain, fine mist), max range 30 m

• Self-Priming & Drainage: Can draw water from external sources (up to 6 m depth)

• Optional Fog Cannon: Remote-controlled dust suppression, range up to 30 m

• Heavy-Duty Build: Q235 steel tank with reinforced anti-slip platform

• Emergency Firefighting Interface: Equipped with fire hydrant connection

Main Technical Parameters

Chassis Configuration

• Brand: Dongfeng (DFAC)

• Engine Options:

• Yuchai YCY30170-60, 170 HP

• Yunnei D30TCIF1, 170 HP

• Transmission: Fast 8-speed gearbox with PTO

• Front Axle: 2.7 tons

• Rear Axle: 8 tons

• Frame: 250 mm heavy-duty beam

• Tires: 9.00R20 (16PR steel radial)

• Cab Features:

• Single-row cab

• Air suspension seat

• Air conditioning

• Remote keyless entry

• Electric windows

• Multifunction steering wheel

• Tachograph

Special Sprinkler System Performance

• Spray Functions:

• Front flush (wide-angle)

• Rear sprinklers

• Side spraying

• Rear platform-mounted high-pressure water cannon

• Water Cannon Features:

• Adjustable spray modes (jet, heavy rain, medium rain, fine mist)

• Max spray distance: 30 m

• Water Pump:

• High-power dedicated sprinkler pump

• Self-priming capability

• Equipped with firefighting interface

• Includes filter system

Tank & Accessories

• Material: Q235 carbon steel

• Partition Thickness: 3 mm

• Tank Thickness: 4 mm

• End Cap Thickness: 5 mm

• Pipeline System:

• Enlarged main pipe (76 mm)

• Aluminum alloy three-way joints

• Stainless steel ball valves

• Platform: Reinforced perforated anti-slip design

• Other Features:

• Rear sprinkling nozzles

• New S-type high-pressure water cannon

• Firefighting connection

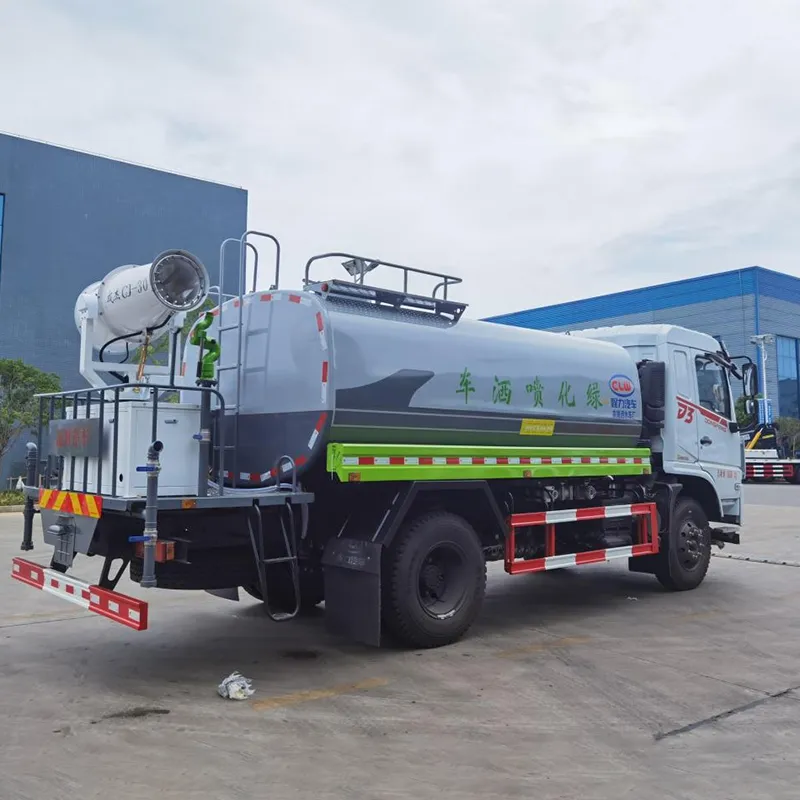

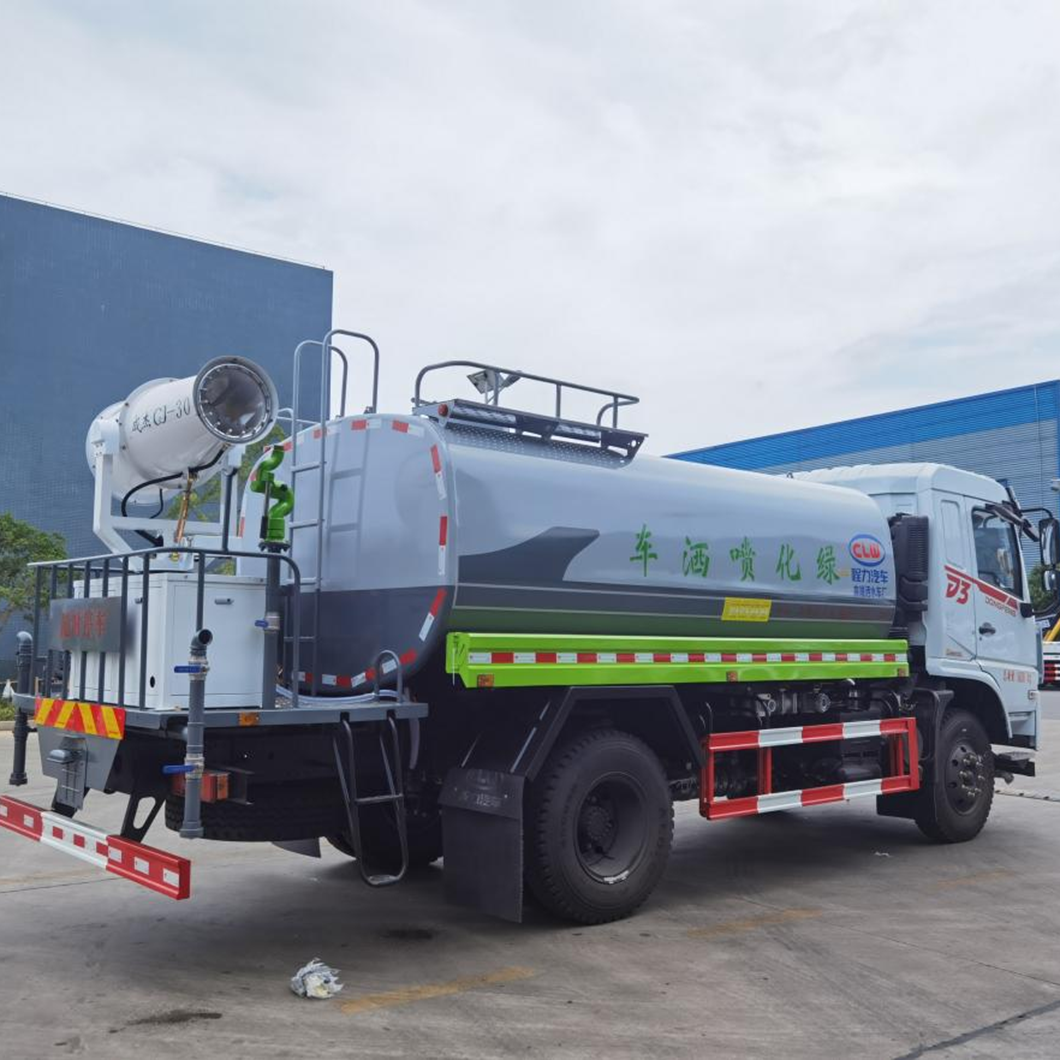

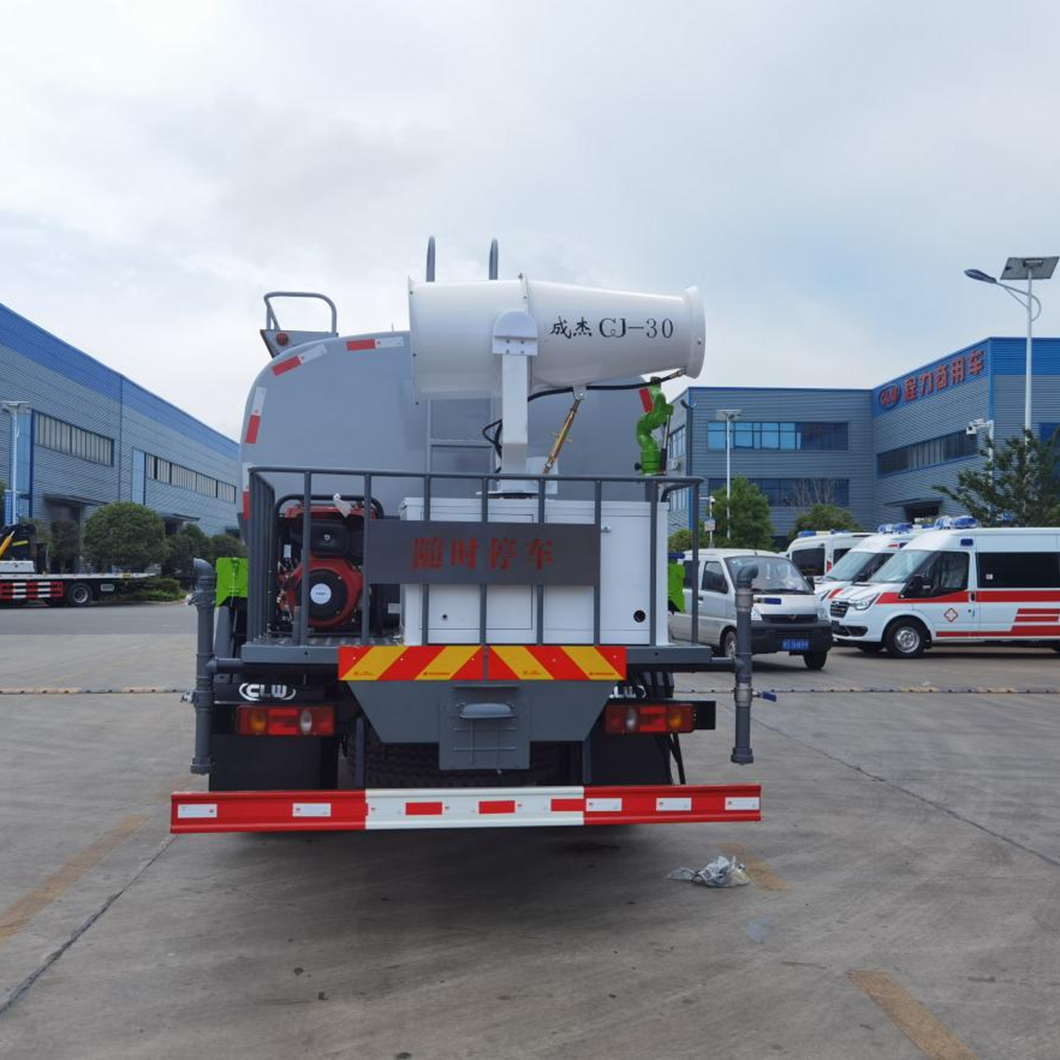

Optional Fog Cannon System (Dust Suppression)

• Model: QF-30

• Power Source: 8 kW air-cooled diesel generator set

• Fan Power: 2.2 kW

• Water Pump Power: 1.5 kW

• Working Pressure: 1.0–3.5 MPa

• Spray Flow: 20 L/min

• Atomization Range: 50–150 μm

• Spray Angle: -5° to 60° (remote control)

• Horizontal Range: 30 m (no wind condition)

• Nozzles: 16 stainless steel spray nozzles

• Rotation: 360° (manual or remote control)

FAQ (Frequently Asked Questions)

Q1: What is the maximum spray distance?
A: The high-pressure water cannon sprays up to 30 meters, and the sprinkling width is ≥16 meters.

Q2: Can the truck draw water from an external source?
A: Yes, it can draw water from rivers or ponds up to 6 meters deep.

Q3: What is the material and thickness of the tank?
A: The tank is made of Q235 carbon steel, with 4 mm tank body, 5 mm end caps.

Q4: Does it have firefighting capabilities?
A: Yes, it is equipped with a fire hydrant connection for emergency firefighting.

Q5: Is the fog cannon system included?
A: It is optional and designed for dust suppression applications.
