Iveco Ouba Thunder 4×4 Box-Type ambulance (Diesel, MT) – CL5041XJH6AYS

1. Vehicle OveRView

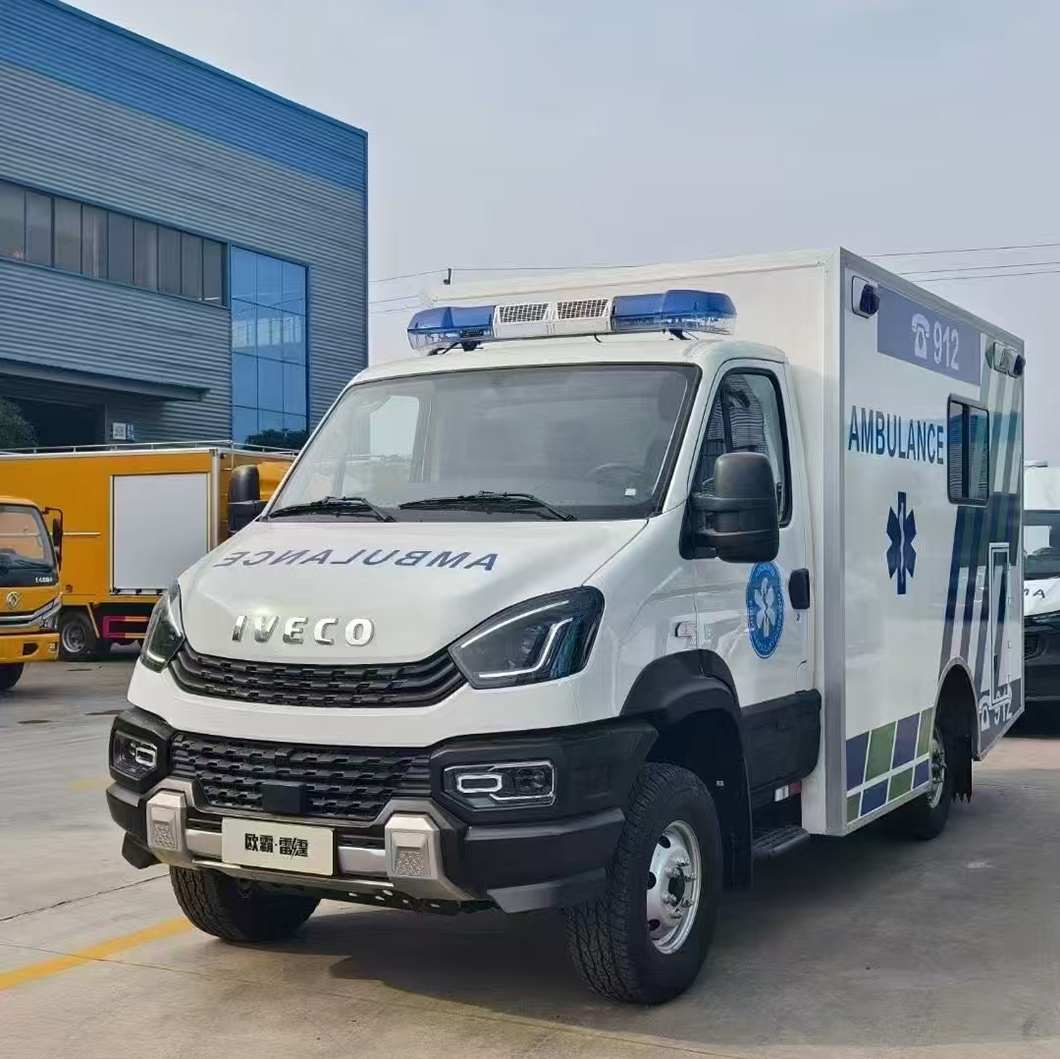

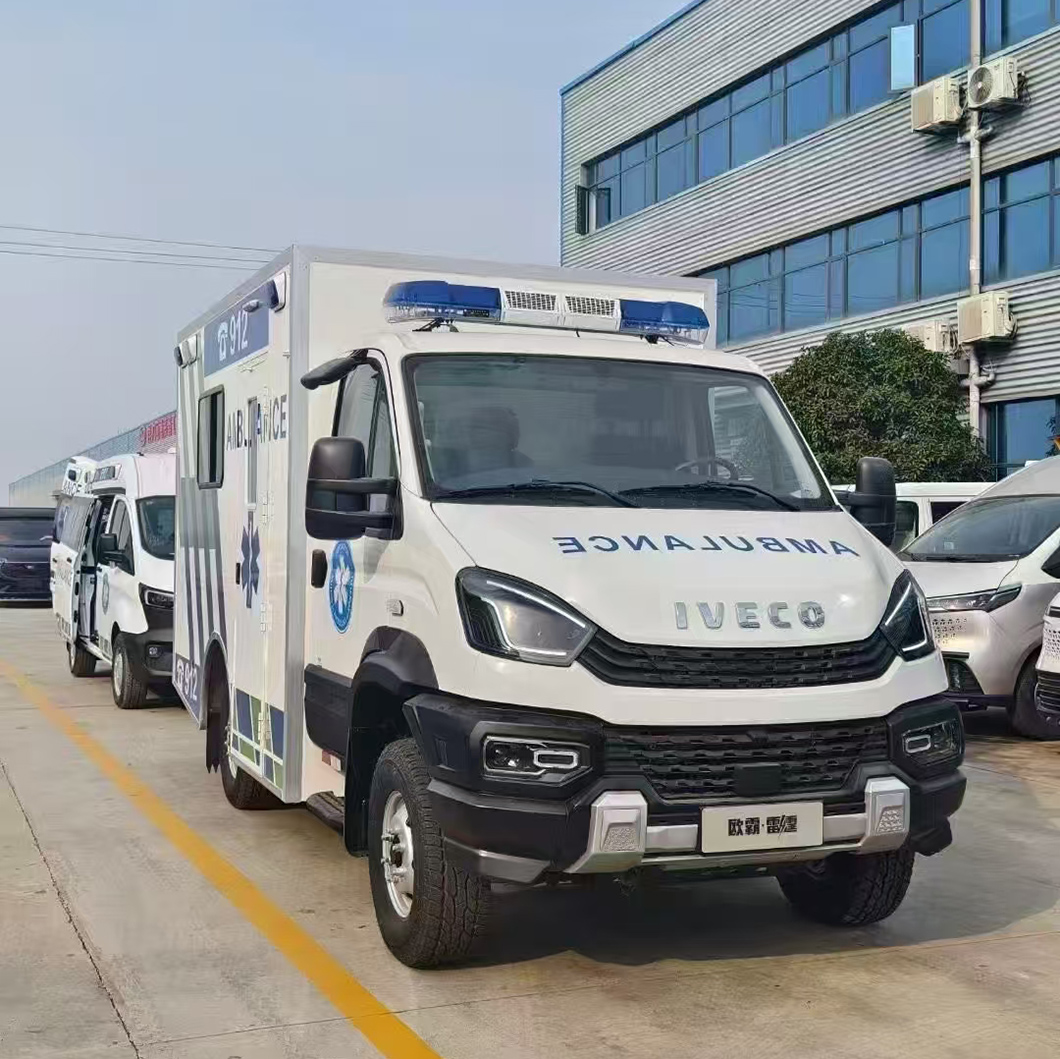

The Iveco Ouba Thunder 4×4 Box-Type Ambulance is built on the Iveco Ouba Thunder all-wheel-drive off-road chassis, equipped with the upgraded F1C diesel engine delivering 132 kW and 430 N·m torque. It features full-time four-wheel drive with electronically controlled gear shifting, a top speed of 140 km/h, and a reinforced high-strength boron steel chassis.

The ambulance is designed for off-road emergency response, extreme terrain, and adverse conditions. The aluminum torsion-resistant box-type medical cabin ensures maximum stability, spacious interior, and ergonomic layout. The vehicle combines European chassis technology with domestic advanced medical vehicle modifications, making it suitable for medical emergency rescue in harsh environments.

Key Highlights:

• Engine: F1C 2.798L Diesel, Euro VI compliant

• Max Speed: 140 km/h

• Drive Type: 4×4 full-time four-wheel drive

• Passenger Capacity: 7 (including patients)

• Transmission: 6-speed manual gearbox

• Chassis: Reinforced high-strength boron steel, 180mm high-section frame for torsion resistance

2. Vehicle Specifications

3. Exterior Design & Safety Features

• Body Structure: Reinforced steel frame for maximum durability.

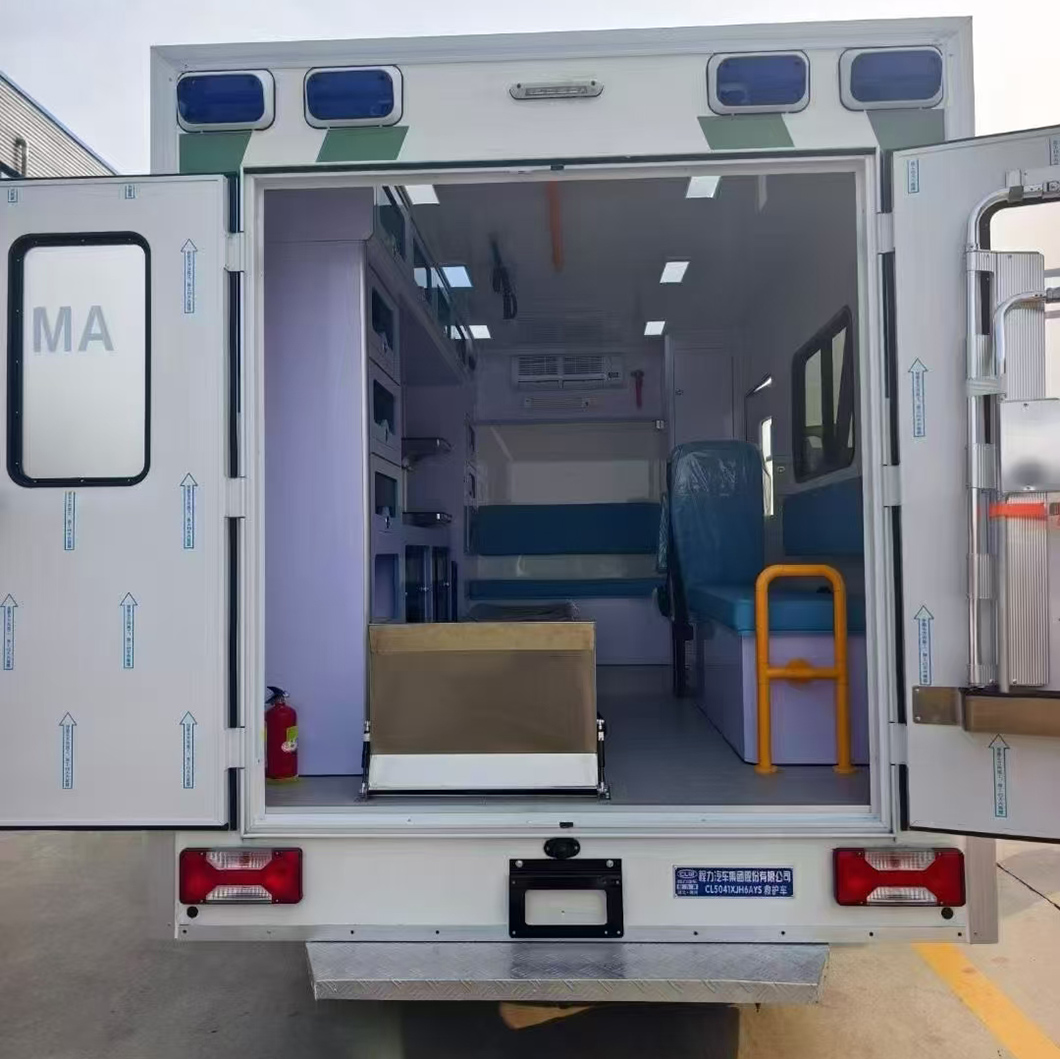

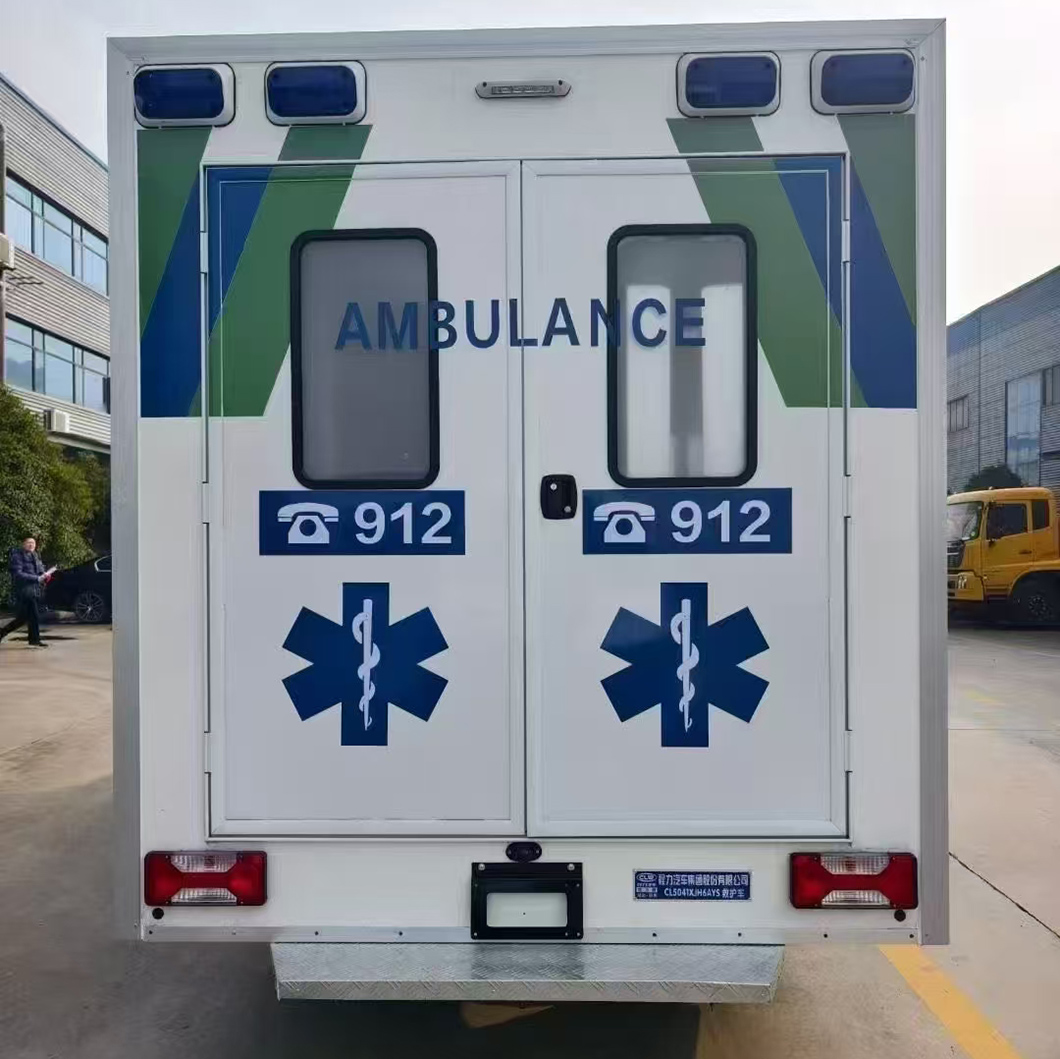

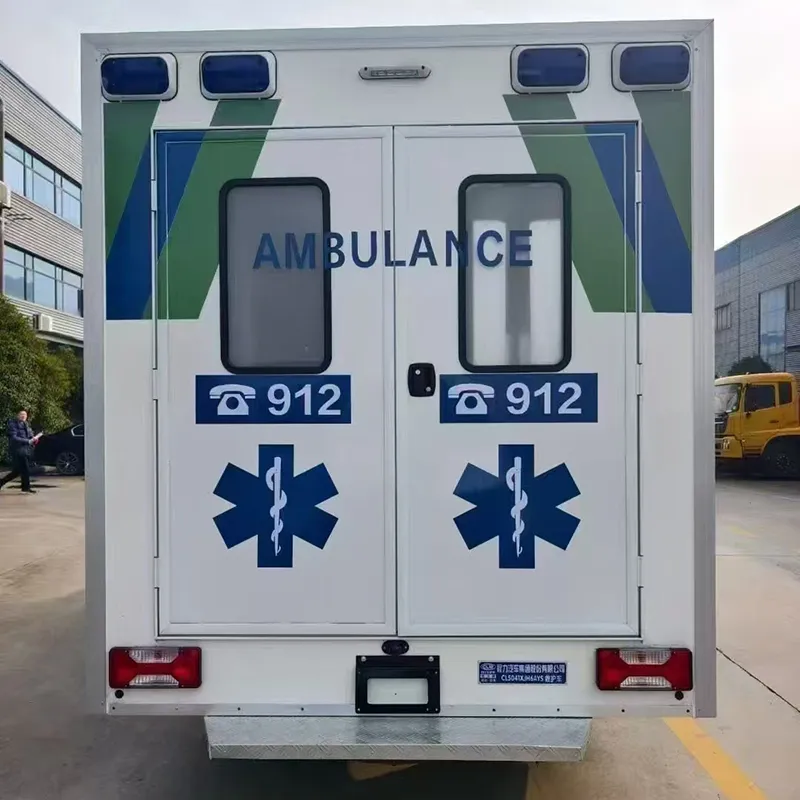

• Doors: Right-side swing door; rear double-opening doors for wide access.

• Color & Markings: White body with red cross emblem and reflective stripes for visibility.

• Windows: Medical cabin fitted with black privacy film.

• Emergency Lights: Integrated LED light bar (I-beam type) with 100W siren; side and rear blue flashing lights for visibility in emergencies.

4. Medical Cabin Configuration

4.1 Patient Transport System

• Automatic Stretcher: High-strength aluminum alloy with PVC waterproof mattress, adjustable backrest, reinforced oval legs, auxiliary wheels, and aluminum blocks to increase load capacity.

• Stretcher Platform: Stainless steel for easy patient boarding.

• IV Rack: Aluminum alloy rail with 2 foldable hooks.

4.2 Medical Oxygen System

• Two 10L steel oxygen cylinders, 15MPa pressure

• Central gas manifold delivers oxygen to two terminals, ventilator interface, and wall-mounted oxygen inhaler

• Humidification bottles ensure patient comfort during oxygen therapy

4.3 Medical Electrical System

• Lighting: 6×12V cabin lights + 2 infusion spotlights

• Inverter: 1000W pure sine-wave, 220V, stable frequency and voltage; 3×220V / 1×12V multi-function outlets

• Disinfection: Intelligent UV sterilization lamp

• Air Circulation: Rear AC and heater, independent control, roof ventilation fan (DC12V)

4.4 Interior Materials & Storage

• Cabin Interior: Lightweight, waterproof, mold-resistant, antibacterial, easy to clean

• Flooring: Medical-grade, anti-slip, fire-resistant, washable

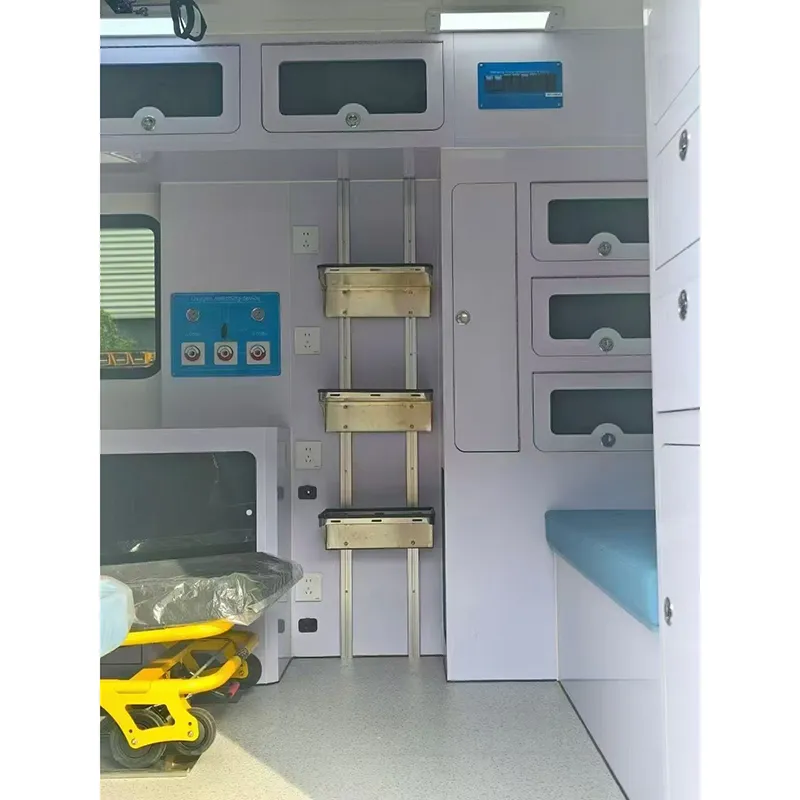

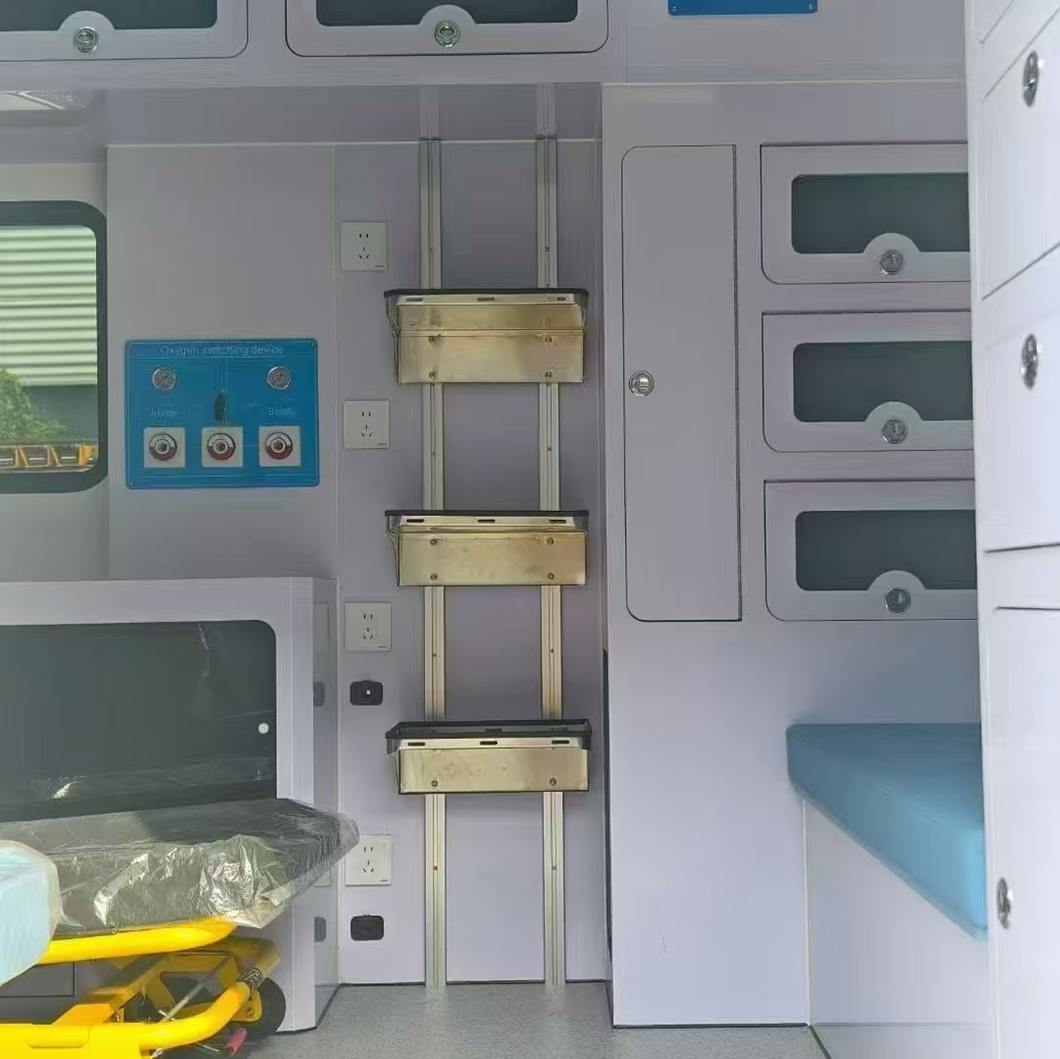

• Cabin Cabinets: Long equipment cabinets, oxygen cylinder storage (2×10L), overhead sliding door cabinets, padded seat with two-point seat belt

4.5 Auxiliary Equipment

• Handheld intercom for driver-cabin communication

• 1×1kg dry powder fire extinguisher

• Covered foot-pedal waste bin

• Safety handrails and emergency hammer

5. Optional Configurations

• Negative Pressure Purification System: High-efficiency HEPA filter, filtration ≥99.995% for 0.3μm particles; cabin pressure -30Pa to -10Pa

• Driving Assistance: Dashcam, reverse camera

• Additional Stretchers: Shovel-type or stair-climbing, 160kg load capacity

6. Functionality & Features

• Patient Safety: Automatic stretcher system with reinforced supports, foldable medical staff seats with safety belts

• Operational Efficiency: Easy patient loading/unloading, IV and oxygen management, optimal cabin climate control

• Medical Readiness: Oxygen system, sterilization, lighting, and air circulation ensure safe patient care

• Driving Safety: Full-time 4×4, low center of gravity, reinforced chassis, and durable suspension allow off-road emergency response

7. Application Scenarios

This ambulance is ideal for:

• Off-Road Emergency Response: Remote or rugged terrain rescue

• Disaster Relief Operations: Natural disaster zones requiring rapid medical deployment

• Critical Patient Transport: ICU-level patient transport between hospitals

• Military or Special Operations: High-mobility medical support in challenging environments

8. FAQ – Frequently Asked Questions

Q1: What is the maximum speed of this ambulance?

A: The Iveco Ouba Thunder 4×4 can reach up to 140 km/h, allowing rapid response in emergency situations.

Q2: How many passengers can it accommodate?

A: It can carry 7 passengers, including medical staff and patients.

Q3: What stretcher system is used?

A: Features an automatic aluminum alloy stretcher with PVC waterproof mattress, adjustable backrest, and reinforced legs.

Q4: Does it have an oxygen system?

A: Yes, it has two 10L steel oxygen cylinders with manifold, ventilator interface, and humidification bottles.

Q5: Can medical devices operate when the vehicle is off?

A: Yes, onboard inverter and auxiliary power supply allow continuous 220V, 1000W power.

Q6: How is patient privacy ensured?

A: Medical cabin windows have black privacy film and secure doors to protect patient privacy.

Q7: Are there optional systems for special conditions?

A: Yes, options include negative pressure purification, stair-climbing or shovel-type stretchers, and advanced driving assistance systems.

Q8: What emergency lighting does the vehicle have?

A: Integrated LED I-beam roof lights, side and rear blue flashing lights, and 100W siren ensure visibility in any situation.
